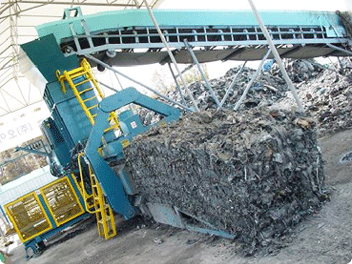

- First developed 200 HP compactor for landfill in Korea
- 2 utility models related to compactor for landfill
- Frame, Knife, binding equipment, etc. are specially manufactured
- Max. 45 ton/hr treatment capability
- Perfect user safety equipment attachment
- Overseas standard for exporting company. Achieved quality management ISO14001 & 9001 certificate
On preparing
Classification Current reclamation method
(semi-aerobic landfill(cell method)
Compaction reclamation method
compaction binding landfill
(Bal Fill method)
Remarks
How to reclaim
- Perform tamping and molding by using tampering machine after filing up waste by about 3m.
- Daily cover: 10~20cm
- Middle cover: 30~60cm
- Final cover: 1.0~2.0m
- Perform molding after filing up waste by 3-layer by compacting and binding it
- Cover: 5~10cm
- Final cover: 1.0~2.0m
(Avg. 1.2m construction)

Waste density
(Ave. surveyed value)
0.30~0.45 Ton/㎥
0.85~0.98 Ton/㎥
House living waste and general waste
Leachate - In rainy day, leachate is rapidly increased because of low waste density and serious surface projection
- Because its decomposition speed is quick and BOD and COD value are high, high-density leachate occurs
- Because high-density leachate is discharged in compacting it, it can reduce the amount of leachate.
- Because of long-term decomposition by 1.5 times, leachate management in landfill site is easy.

GAS Amounts & Quality - Much gas is generated and methane gas among generated gases is about 65%
- Because heavy machine is requested in repairing molding and surface, gas collecting main’s damage is expected.
- Because decomposition speed is slow, the amount of methane gas among generated gases can be reduced less than 20%
- Because gas collecting main is installed among compacted dumps, there is not the risk of its damage.


SHA-120L SHA-150L SHA-200L
Compacting power 110 ton
150 ton
170 ton
MOTOR 120HP
150 HP
200 HP
Compacted material size 1100Wx1100HxVar.L
1100Wx1100HxVar.L
1100Wx1100HxVar.L
Compacted material weight 800-1300 kg
800-1500 kg
800-1500 kg
Treatment capability 20-35ton/hr 25-40 ton/hr
30-45 ton/hr
The number of interconnected lines 5
5
5
Machine size 3800Dx4000Hx11000L 3800Dx4000Hx11000L
3800Dx4000Hx11000L
Machine weight 29000 kg 31000 kg 35000 kg
In calculated by apparent density of 0.5/㎥
