- Korean type can compcator since 1994
- Various models and economic price
- Environment-friendly treatment and safe operation		 - Recycle waste can
- Perfect user safety equipment
- Overseas standard for exporting company. Achieved quality management ISO14001 & 9001 certificate

Vertical SH100,200,300,500 | Horizontal automatic SHC20 50 75 | Drum SD200 200W | Using companies
On preparing

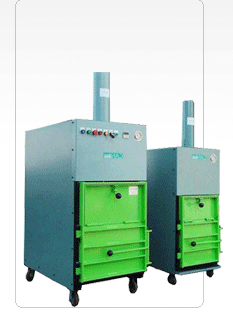

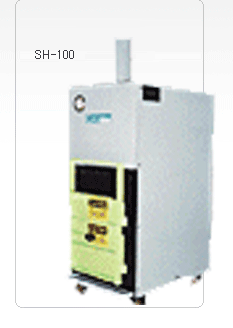

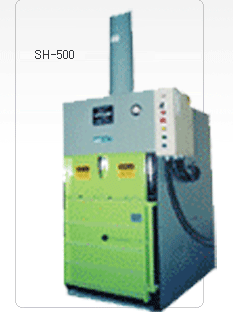

SH-100 SH-200 SH-300 SH-500
Compacted power
9
12
18
35
MOTOR
2 HP, 220V single-phase
3 HP
5 HP
10 HP
one time
Beverage can : 70-80 EA
120-150
230-250
550-600

18liter can : 1 EA
2
4
16
Compacted material size
300Wx300Dx100H
300Wx360Dx100H
360Wx480Dx120H
670Wx500Dx150H
Machine size
480Wx750D
x1500H
485Wx850D
x1650H
650Wx1100D
x1800H
900Wx1370D
x2700H
Machine weight
150 kg
270 kg
350 kg
850 kg
Vertical SH100,200,300,500 | Horizontal automatic SHC20 50 75 | Drum SD200 200W | Using companies
Horizontal automatic compactor can separately compact waste by directly connected to chute or attached to selection conveyor, which is the representative recycling system to treat large amount by automated discharging process from injection.
On preparing

SHC-20 SHC-50 SHC-70
Treatment capability
1.5 ton/hr
2.5 ton/hr
5 ton/hr
MOTOR
20 HP
50 HP
75 HP
Compacted material size
500Wx500Hx150L
600Wx600Hx200L
750Wx750Hx500L
SYS.input
210 kg/㎠
240 kg/㎠
280 kg/㎠
Machine size
1100Wx1450Hx4650L
650Wx1100Dx1800H
650Wx1100Dx1800H

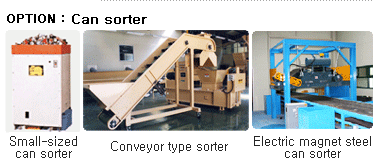

OPTION
Injection conveyor
Injection conveyor
Injection conveyor

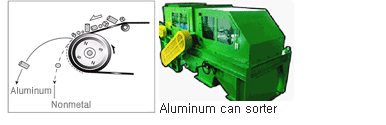

ST,AL can sorter
ST,AL can sorter
ST,AL can sorter
Hopper and Compacted material size can be adjusted by customer’s request Treatment capability can be different according to Compacted material’s shape and condition.
Vertical SH100,200,300,500 | Horizontal automatic SHC20 50 75 | Drum SD200 200W | Using companies

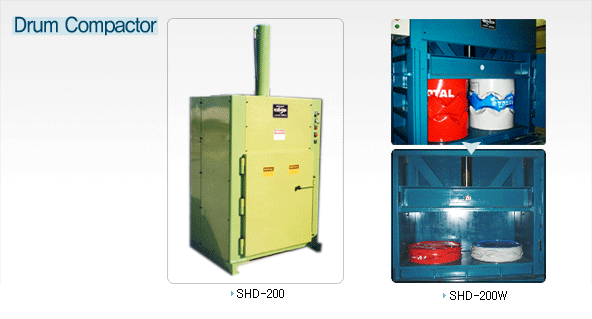

SHD-200
 SHD-200W
Compacting power 28 ton
 55 ton
MOTOR 10 HP
 20 HP
one time 200ℓ,1 EA
 200ℓ, 2 EA
Compacted material size 650*650*1200
 650*1300*1200
Treatment capability 40 ea/hr
 60 ea/hr
Compacting rate Max. 1/14
 Max. 1/14
Machine size 835W*1250D*2620H
 1650W*1710*2620H
Machine weight 1350 kg 2250 kg
Vertical SH100,200,300,500 | Horizontal automatic SHC20 50 75 | Drum SD200 200W | Using companies

LG CHEMICAL, Novatis Korea, Doosan pipe, GS CALTEX, Nongsim, Coca Cola, HITE Beer, Crown confectionary, Hanhwa, Doosan Dongah, Morning glory, Kimpo city hall, Muju province office, Masan city hall, Jeju city hall, Jinhae city hall, Pyeongchang province office, Korea National Railroad, Gangreung sponsor agency, Pharmacist newspaper, Jongee Nara, Korea Highway Corporation, Samsung insurance, Lotte department store, Shinsege, Hyundai department store, Seoul healthcare university, Sunggyungwan university, Yeongnam university, Aju university, LG, Daewoo Building, etc.
