- commercialized exported reused materials
- Specially manufactured for PET and waste vinyl bale
- Overseas standard for exporting company. Achieved quality management ISO14001 & 9001 certificate		 - Guarantee the highest quality by adopting patented utility model
- Various model and economic price
- Perfect user safety equipment attachment
Semi-automatic SHP-30 50 75 | Full automatic SHA-50P 75P 100P | Vertical V-3630P 4230P 4830P 6030XP | Using companies

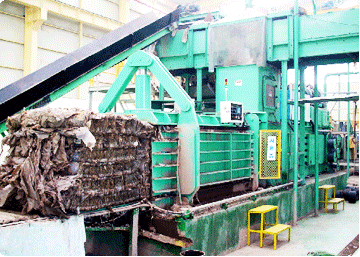

Himssen waste vinyl/PET semi-automatic baler has capability to load max. 24 tons in exported 40FT container, which is multi-purpose equipment of 30~75 HP capacity to compress even hard plastic.
Specially manufactured frame, knife, and stopper is installed, which improves duration and you can selectively use side-eject and semi-automatic binding equipment (utility model).

On preparing
SHP-30 SHP-50 SHP-75
Compacting power
66 ton
87 ton
87 ton
MOTOR
30 HP
50 HP
75 HP
Compacted material size
800Wx1000Dx1850H
800Wx1000Dx1850H
800Wx1000Dx1850H
Compacted material weight
450-550 kg
450-580 kg
480-630 kg
Taped line
5
5
5
Machine size
1550Dx2200Hx6500L
985Wx2300Hx6500L
1800Dx2300Hx6500L
Machine weight
8500 kg
11000 kg
12000 kg
Hopper and compacted material size can be adjusted by customer’s request.
Semi-automatic SHP-30 50 75 | Full automatic SHA-50P 75P 100P | Vertical V-3630P 4230P 4830P 6030XP | Using companies


On preparing

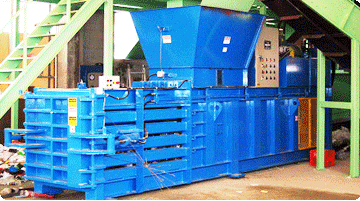

Full automatic compacting binder is:

Vinyl/PET full automatic compacting method requests powerful compacting power and length control and binding material selection are important.
Especially, in the case of PEC, it is specially used compactor to request know-how on stopper installation, compaction RAM’s depth, blade structure, binding needle path structure, et. Of course, we have plentiful experience.

SHA-20 SHA-50P SHA-75P SHA-100P
Compacting power
28 ton
66 ton
88 ton
110 ton
MOTOR
20 HP
50 HP
75 HP
100 HP
Compacted material size
700Wx500HxVar.L
800Wx900HxVar.L
800Wx1000HxVar.L
1000Wx1000HxVar.L
Compacted material weight
90-220 kg
250-450 kg
350-530 kg
480-630 kg
The number of interconnected lines
3
4
5
5
Machine size
2650Dx2000Hx5550L
3000Dx4000Hx8400L
3000Dx4000Hx9000L
3200Dx4000Hx9000L
Machine weight
4800 kg
16500 kg
19500 kg
23000 kg
Hopper and compacted material size can be adjusted by customer’s request Treatment capability can be different according to compacted material’s shape and condition.
Semi-automatic SHP-30 50 75 | Full automatic SHA-50P 75P 100P | Vertical V-3630P 4230P 4830P 6030XP | Using companies
Vertical type compactor is.

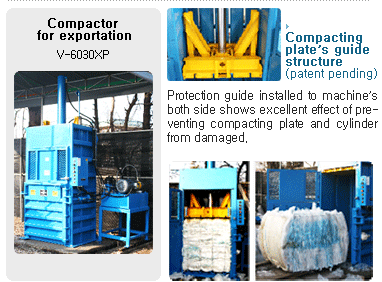

It is the best sellered compactor that 2 patented utility models such as compacting plate guide and automatic discharging equipment to protect cylinder are applied for. It has perfect safety device such as injection door, etc. and also, it is the practical model that price, duration, performance, etc. are varified already. Now, about 500 compactors are operated in Korea. V-6030XP is the compactor used exclusively for exported vinyl.




V-3630P
V-4230P
v-6030P
On preparing

V-3630P V-4230P V-4830P V-6030XP
Compacting power
37 ton
42 ton
53 ton
53 ton
MOTOR
10 HP
15 HP
20 HP
20 HP
Compacted material size
915Wx760Dx900H
1070Wx760Dx1000H
1200Wx760Dx1100H
1200Wx1000Dx1200H
Compacted material weight
130-260 kg
80-350 kg
250-520 kg
350-650 kg
The number of interconnected lines
4
4
4
4
Machine size
1570Wx1180Dx3000H
1570Wx1180Dx3000H
1570Wx1180Dx3500H
1500Wx1200Dx3700H
Machine weight
1100 kg
1750 kg
2500 kg
3500 kg
Semi-automatic SHP-30 50 75 | Full automatic SHA-50P 75P 100P | Vertical V-3630P 4230P 4830P 6030XP | Using companies

Samsung Electronics, Samsung Corning precise glass, Samsung Engineering, Korea Resource recycling corporation, Samsung Tesco Logistics center, KAL, KINTEX, KT&G, Uijeongbu city hall, Kimpo city hall, Daewon international trade, Hanseung international trade, Juwon International trade, Jeongseok steel, Sema, Geosung resource, Rico, Gyeongin environment, Namyang, Daelim industry, Daewoo Motors, Dongbu electronics, Samyung chemical, Sampyo Food, Hanhwa, Ilsin chemical, Hwaseung Industry, Hankook Glass, Doosan Cegram, Seongil chemical, Sinnong, etc.
